CuBe2 ASTM B194 Beryllium Copper Strips 0.12mmt x 250mmw Hard State
Product Normal Description:
Product Name: Beryllium copper strips
Grade: CuBe2, ASTM B194
Thickness: 0.12mm
Width: 250mm
State: TD04(Hard)
Product Brand: CUBERYLLIUM®
Copper Beryllium Alloys combine high strength with good electrical and thermal conductivities. The high strength of copper beryllium alloys is accomplished by either age hardening or precipitation hardening. Valued for their non-magnetic and non-sparking qualities, Copper Beryllium Alloys are available as high-strength and high conductivity alloys. CUBERYLLIUM® supplies Copper Beryllium in a range of tempers, and in strip, rod, bar, wire, rod, tube, and plate form. Beryllium copper alloys are used in a variety of applications including automotive, industrial, and oil & gas drilling. CUBERYLLIUM® is your go-to beryllium supplier.
Chemical Composition of CuBe2 ASTM B194 Beryllium Copper Alloy:
| Weight % | Be | Ni+Co | Ni+Co+Fe | Pb | Cu | Other |
| minimum | 1.80 | 0.20 | — | — | Bal | — |
| maximum | 2.00 | — | 0.60 | 0.02 | 0.5 |
Typical Physical Properties of CuBe2 ASTM B194 Beryllium Copper Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of CuBe2 ASTM B194 Beryllium Copper Strips:
| Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip |
| Designation | Description | Tensile Strength
(Mpa) | Yield Strength 0.2% offset | Elongation Percent | HARDNESS
(HV) | HARDNESS
Rockwell
B or C Scale | Electrical Conductivity
(% IACS) |
| H-Solution Heat Treated and Cold Worked | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15～19 |
Noted:
Specifications: AMS-QQ-C-533, ASTM-B194

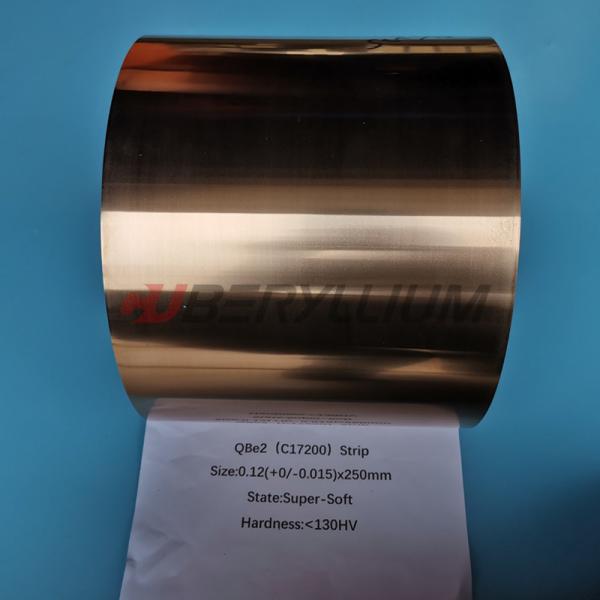

Product Photos:
Why Choose Us?
1, We are a professional beryllium copper alloy manufacturer, with more than 20 years' experience.
2, With various types of beryllium copper alloy, such as beryllium rods, bars, strips, wires and so on.
3, Good quality.
4, Competitive offers.
5, After-sale service.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
