| QBe2.0 Copper Strips 0.1mm 0.15mm, 0.2mm Beryllium Bronze Strips |
| Product Name | Copper Strips |
| Grade | QBe2.0 |
| Thickness | 0.1mm, 0.15mm, 0.2mm |
| Mateial | Copper Alloy/Bronze Alloy |
| Available Width | 8mm~300mm |
| Temper | TB00, TD02, TD04 |
Introduction of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM® is an industry-leading manufacturer of beryllium copper alloys. Our inventory is manufactured to ASTM specifications. Our beryllium copper alloys could be custom manufactured to your specific size and shape need, whether is be strips, rods, bars, sheets, plates, wires or tubes. Our production lines have been developed to produce exceptional, consistent quality in every copper alloy we produce.
Chemical Composition of QBe2.0 Copper Alloy:
| CUBERYLLIUM® Brand | Gost- Number | Beryllium | Al | Ni | Fe | Cu | Si |
| Cuberyllium-Qbe2 | Qbe2 | 1.80-2.10 | 0.15 max | 0.2~0.5 | 0.15 max | Rest. | 0.15 max |
Standard Tolerance of QBe2.0 Copper Alloy:
| Tolerance Sheet |
| (MM) |
Strip
Thickness | CuBeryllium®
Standard Tolerance |
| over | incl. | plus or minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. |
New information plz contact sales@cuberyllium.com.
CUBERYLLIUM® Advantages:
Superior quality
Proactive customer service
Innovative solutions
Extremely fast turn around
Technical Support
Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.

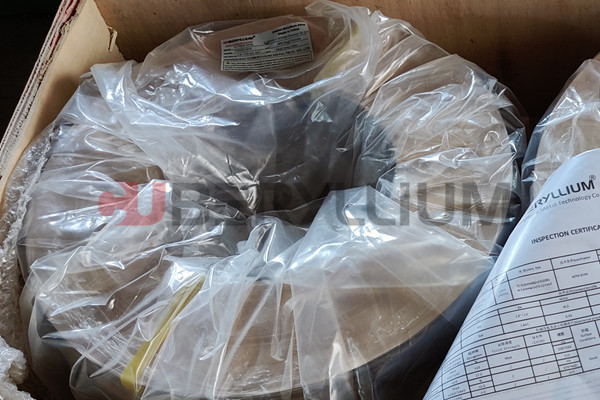

Product Packing of QBe2.0 Copper Alloy:
Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically packaged to meet the customer’s needs. We also could adapt to customers’ request.
For example, our clients from India need every coil strips in one woodencase, every woodencase should be around 50~60kg.
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
Product Tags:
|
|
QBe 2.0 Copper Strips 0.1mm 0.15mm 0.2mm Beryllium Bronze Images
|
